ST Nucleo-N657X0-Q

Tags: chip:stm32 chip:stm32n6 chip:stm32n657

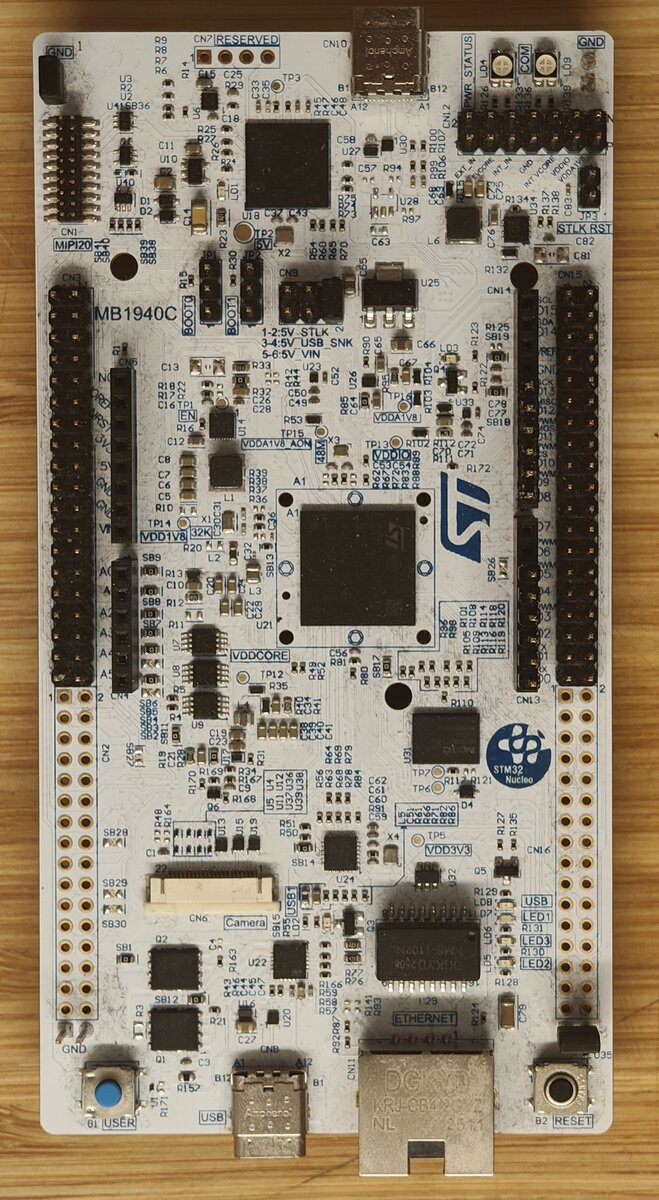

STMicro Nucleo-N657X0-Q development board

Nucleo-N657X0-Q

The STM Nucleo-N657X0-Q is a development board for the STM32N657X0H3Q, an Arm Cortex-M55 with 4 MiB of on-chip AXISRAM, an on-chip Neural-ART NPU, and no internal flash. In production, code is fetched from external XSPI NOR flash and in development, the image is loaded directly into AXISRAM by the on-board ST-LINK-V3EC. Refer to the https://www.st.com/en/evaluation-tools/nucleo-n657x0-q.html website for the full product page.

Features

  • STM32N657X0H3Q MCU (Arm Cortex-M55, up to 800 MHz)

  • On-chip Neural-ART NPU accelerator

  • 4 MiB on-chip AXISRAM (no internal flash)

  • External XSPI NOR flash interface

  • On-board ST-LINK-V3EC

  • 3 user LEDs (LD5 red, LD6 green, LD7 blue), plus status LEDs (LD1 5V_PWR, LD4 PWR, LD9 COM)

  • User pushbutton (B1) and reset pushbutton

  • 32.768 kHz crystal oscillator

  • USB Type-C connectors (ST-LINK and user)

  • ST Zio connector

  • ST morpho headers

Warning

This is the initial NuttX port for the STM32N6 family. The supported peripheral set is intentionally minimal: USART1 (the ST-LINK VCOM console), GPIO, RCC, PWR, the SysTick-based timer, and the three on-board user LEDs. Other on-chip peripherals and on-board features (XSPI flash boot, networking, user button, USB, MIPI, NPU, etc) are not yet wired up. The CPU is currently clocked at 200 MHz from PLL1. Raising it to the standard 600 / 800 MHz operating points is deferred to a follow-up change.

Buttons and LEDs

The board exposes three user LEDs and a user pushbutton:

ID

Color

GPIO

Notes

LD5

Red

PG10

Active low

LD6

Green

PG0

Active low

LD7

Blue

PG8

Active low

B1

Blue

PC13

Active high, external pull-down

The LEDs are supported via two mutually-exclusive paths:

  • CONFIG_ARCH_LEDS=y (default when the board is selected) lets NuttX drive the LEDs to indicate OS state (boot stages, idle, interrupt activity, assertion, panic). See boards/arm/stm32n6/nucleo-n657x0-q/include/board.h for the state-to-LED mapping.

  • CONFIG_ARCH_LEDS=n plus CONFIG_USERLED=y and CONFIG_USERLED_LOWER=y hands the LEDs to userspace via the /dev/userleds character device. The nucleo-n657x0-q:leds configuration bundles this with apps/examples/leds so the leds NSH command can cycle the LEDs as a quick smoke test.

The user pushbutton is not yet wired up; a polled or EXTI-based driver is deferred to a follow-up change.

Pin Mapping

The shipped configurations map only the pins required for the serial console. All other GPIOs retain their reset state and are free for application use.

Pin

Signal

AF

Notes

PE5

USART1_TX

AF7

Routed to ST-LINK VCOM (host RX)

PE6

USART1_RX

AF7

Routed to ST-LINK VCOM (host TX)

Power Supply

The board is powered over either USB Type-C connector (ST-LINK or user) at 5 V. On-board regulators derive the MCU and I/O rails. See the ST user manual for the full power tree and jumper selection.

Installation

Two host tools are required:

  • A bare-metal Arm toolchain, e.g. the GNU Arm Embedded toolchain (arm-none-eabi-gcc) packaged by most Linux distributions or available from Arm.

  • STM32CubeProgrammer for loading images into AXISRAM over the on-board ST-LINK.

Building NuttX

From the top of the NuttX source tree:

$ ./tools/configure.sh nucleo-n657x0-q:<config>
$ make

At the end of the build, nuttx.bin is the raw image that the flashing step below loads into AXISRAM.

The toolchain selection can be changed via make menuconfig.

Flashing

The board boots in development mode: the on-board ST-LINK loads the image directly into AXISRAM at 0x34000400 (the first 1 KiB is reserved for the boot ROM header) and starts execution there. Signed XSPI flash boot via a first-stage bootloader is not yet supported.

Use STM32CubeProgrammer’s CLI to load and run nuttx.bin:

$ STM32_Programmer_CLI -c port=SWD mode=UR -halt              \
      -d nuttx.bin 0x34000400                                 \
      -w32 0xE000ED08 0x34000400                              \
      -g 0x34000400

The -w32 write retargets VTOR to the SRAM image before the -g jump, so the Cortex-M55 starts from the NuttX vector table rather than the boot ROM’s.

Configurations

Each configuration is selected with:

$ ./tools/configure.sh nucleo-n657x0-q:<config>

Unless otherwise noted, console output is accessed via ST-LINK (USART1) at 115200 8N1.

nsh

Minimal NuttShell configuration. Boots into the NSH prompt via ST-LINK and exposes the built-in commands plus getprime-style apps selectable via make menuconfig.

ostest

Builds the NSH configuration with apps/testing/ostest added. Run ostest from the NSH prompt to exercise the core RTOS primitives (tasks, mutexes, semaphores, signals, message queues, POSIX timers, condition variables, scheduling). Used as the smoke test.

leds

Builds the NSH configuration with CONFIG_ARCH_LEDS disabled and the userled lower-half driver and apps/examples/leds enabled, so the three on-board LEDs are exposed at /dev/userleds and can be exercised from userspace. Run leds from the NSH prompt to spawn the daemon that cycles through the LEDs.

License Exceptions

None.

References

  • [RM0486] STM32N647/657xx Arm®-based 32-bit MCUs reference manual

  • [UM3417] STM32N6 Nucleo-144 board (MB1940) user manual

  • [ES0620] STM32N657 errata sheet
